Purlins
Our purlins is manufactured with the highest quality materials and latest technologies in compliance with market standards. Testing is done on various parameters to ensure this accuracy. We offer this purlin with a choice of different specifications as per the needs of the customers.
Our purlins are manufacture in multiple models and sizes. The range includes C, Z & U GI Purlins, C, Z & U HR Purlins. We provide best purlins services in WESTERN ODISHA.
What is Purlin?
A Purlin is a horizontal beam or bar used for structural support in buildings, usually in a roof. Purlins are supported by either rafters or building walls. They are commonly used in metal buildings, although they sometimes replace closely spaced rafters in wooden frame structures.
A roof purlin supports the weight of the roof deck. Roof deck is wood panel, ply board or metal sheeting that forms the roof surface. When made of wood, it is usually covered with some type of weatherproofing and sometimes with an insulation material.
Several types of purlins exist. They are divided into categories based on the material from which they are made and their size. Purlin is important because without it, there is no frame for the sheet to rest on the roof, making purlins important for the roof structure.
We are basically deal in the three types of Purlins. These are following:

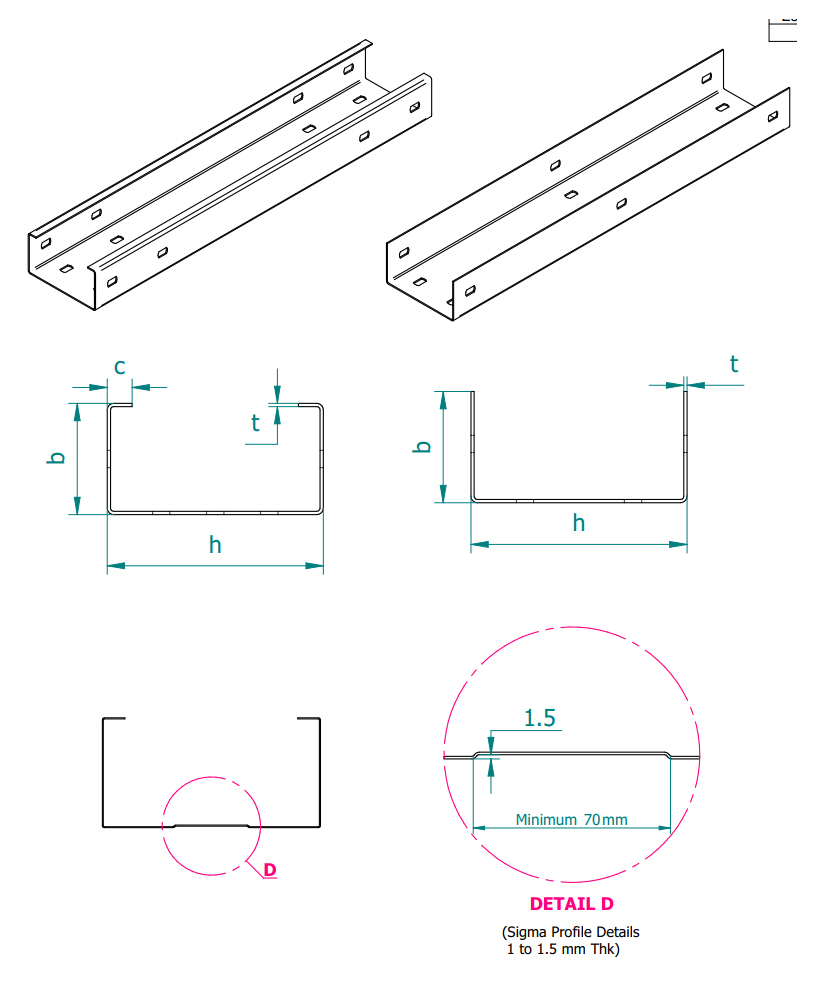

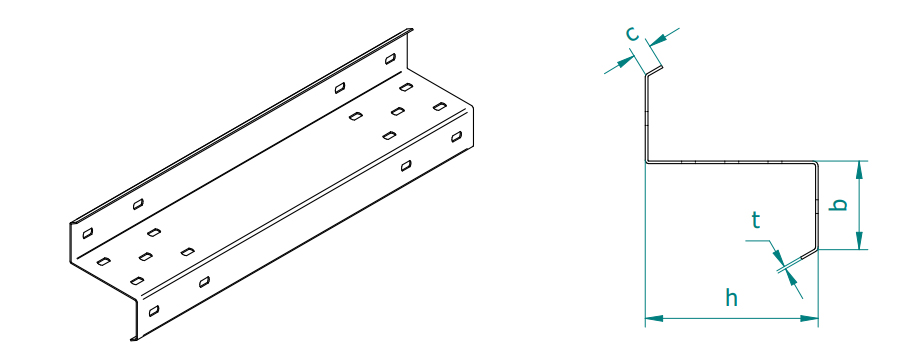

C,Z & U Profile
| C,Z & U PROFILE | ||
|---|---|---|
| SL. NO | DETAILS | MIN/MAX |
| 1 | h | 70mm to 300mm |
| 2 | b | 40mm to 80mm |
| 3 | c | 0mm to 20mm |
| 4 | t | 1mm to 3mm |
Mechanical Properties of Material
| MECHANICAL PROPERTIES OF MATERIAL | |
|---|---|
| Material | Hot Roll Steel, Galvanized Steel |
| Thickness | 0.8mm to 3.2mm |
| Yield Strength | 550 MPA (0.80 To 2.5 mm Thk.) 350 MPA (2.5 To 3.15 mm Thk.) |
Advantages
- Excellent Design
- High Durable
- Chemical Corrosion Resistance
- Easy Handing
- Superior Tensile Strength
- Standard Customized Specification
- Available in both C, Z & U Shapes
- Abrasion Corrosion Resistant
